Bracket Type EEG HD

Bracket Type EEG HD

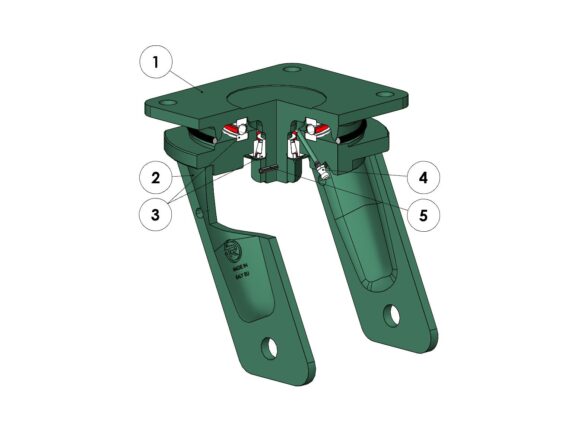

Carrying Capacity 1600-2000kg. Bracket suitable for applications with loads up to 4300 daN, even in heavy-duty use conditions (mechanised towing and high speeds). The fixing plate is made of thick forged steel with an integrated pin, a fork with thick legs shaped by means of deepdrawing process and welded to the flange; the axial thrust and taper bearing guarantee excellent manoeuvrability also at full load and increase the side impact resistance of the bracket. The bracket grease nipple, locknut anti-loosening system, and protective o-ring against dust and green powder painting guarantee its extremely long duration and simple maintenance. The top plate & rsquo;s longer side of the fixed brackets are parallel to the axle of the wheel.

Bracket Type EEG HD
Bracket Type EEG HD

Series

Can be fitted to the following series
