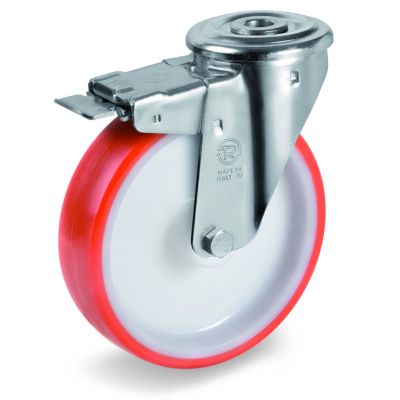

Injection Moulded Polyurethane Tyre Bonded to Nylon Centre, Bolt Hole Castor with Brake, NL Duty

Polyamide 6 centre wheel Standard to medium-heavy duty loads Zinc plated (unless otherwise described) pressed steel castor housings

Download Series Data Sheet 3D CAD preview and model

Request a call back

Product Specification

Bore Type - Plain Bore

Part Number

Wheel Diameter

Tread Width

Overall Height

Carry Capacity Kg 4km/h

Unit Weight

Pa Shore Hardness

Offset

Bolt Hole Ball Race Diameter

Pa Bolt Hole Diameter

Temperature

CAD Drawing

606401

107

120

0.57

55 Shore D

-15 to 80

Request
Drawing

606402

100

128

170

0.68

55 Shore D

-15 to 80

Request
Drawing

606403

125

156

220

0.87

55 Shore D

-15 to 80

Request
Drawing

606404

150

182

220

1.03

55 Shore D

-15 to 80

Request
Drawing

606411

150

188

300

1.74

55 Shore D

102

-15 to 80

Request
Drawing

606406

200

236

300

2.18

55 Shore D

102

-15 to 80

Request
Drawing

Bore Type - Roller Bearing

Part Number

Wheel Diameter

Tread Width

Overall Height

Carry Capacity Kg 4km/h

Unit Weight

Pa Shore Hardness

Offset

Bolt Hole Ball Race Diameter

Pa Bolt Hole Diameter

Temperature

CAD Drawing

606421

107

120

0.75

55 Shore D

-15 to 80

Request
Drawing

606422

100

128

170

0.88

55 Shore D

-15 to 80

Request
Drawing

606423

125

156

220

1.02

55 Shore D

-15 to 80

Request
Drawing

606424

150

182

220

1.16

55 Shore D

-15 to 80

Request
Drawing

606431

150

188

300

2.03

55 Shore D

102

-15 to 80

Request
Drawing

606426

200

236

300

2.46

55 Shore D

102

-15 to 80

Request
Drawing

Bore Type - Ball Bearing

Part Number

Wheel Diameter

Tread Width

Overall Height

Carry Capacity Kg 4km/h

Unit Weight

Pa Shore Hardness

Offset

Bolt Hole Ball Race Diameter

Pa Bolt Hole Diameter

Temperature

CAD Drawing

605501

107

120

0.72

55 Shore D

-15 to 80

Request
Drawing

605502

100

128

170

0.78

55 Shore D

-15 to 80

Request
Drawing

605503

125

156

220

0.96

55 Shore D

-15 to 80

Request
Drawing

605511

150

188

300

2.21

55 Shore D

102

-15 to 80

Request
Drawing

605510

160

193

300

2.31

55 Shore D

102

-15 to 80

Request
Drawing

605506

200

236

300

2.65

55 Shore D

102

-15 to 80

Request
Drawing
